2 Core Sheathed Flat Cable – PVC Insulated

2 Core Sheathed Flat Cable – PVC Insulated

0 out of 5

( There are no reviews yet. )

Category: Electrical Cable

[yith_wcwl_add_to_wishlist]

Description
Reviews (0)

Description

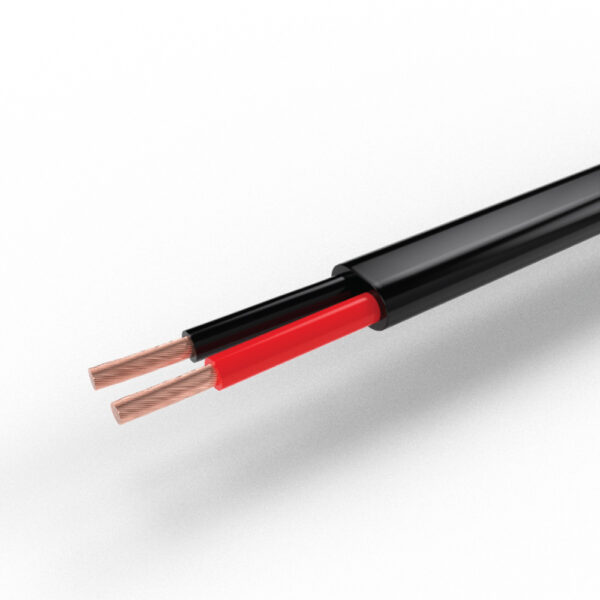

The 2 Core Sheathed Flat Cable is a high-quality flexible electrical cable manufactured using premium-grade annealed copper conductors, PVC insulation, and an overall PVC sheath. Designed for dependable power transmission, the cable offers excellent flexibility, mechanical strength, and insulation performance for light-duty electrical applications.

Engineered to deliver reliable performance in both indoor and outdoor environments, the cable is suitable for portable electrical tools, domestic appliances, lighting systems, extension cords, and general-purpose wiring. Manufactured under stringent quality control, the 2 Core Sheathed Flat Cable ensures long service life, superior conductivity, and enhanced electrical safety.

Key Features

High Conductivity Annealed Copper Conductors
Flexible Multi-Strand Construction
Premium PVC Insulation & Outer Sheath
Excellent Mechanical Strength
Heat, Moisture & Abrasion Resistant
Suitable for Indoor & Outdoor Applications
Stable Electrical Performance
Easy to Install & Handle
Available in Multiple Conductor Sizes
Ideal for OEM & Industrial Applications

Technical Specifications

Cat No.	No of Strands SWG	ABC Conductor Size in mm	Cross Sectional Area of Conductor	Nominal Insulation Thickness in mm	Nominal Sheath Thickness in mm(+-2%)	*Current Carrying Capacity(AMPS)	Maximum Conductor Resistance )0hms/Km
2C-01	14/42	0.102	0.114	0.65	0.50	0.9	169.6
2C-02	14/41	0.112	0.138	0.65	0.50	01.0	140.6
2C-03	14/40	0.122	0.164	0.65	0.50	1.3	118.5
2C-04	14/39	0.132	0.192	0.70	0.50	1.5	101.3
2C-05	14/38	0.152	0.254	0.70	0.50	2.0	76.4
2C-06	14/36	0.193	0.410	0.70	0.50	3.2	47.4
2C-07	1636	0.193	0.468	0.70	0.60	3.7	41.4
2C-08	23/42	0.102	0.188	0.75	0.50	1.5	103.2
2C-09	23/41	0.112	0.22	0.75	0.50	1.8	85.6
2C-10	23/40	0.122	0.269	0.70	0.50	2.1	72.2
2C-11	23/39	0.132	0.315	0.70	0.50	2.5	61.6
2C-12	23/38	0.152	0.418	0.70	0.60	3.3	46.5
2C-13	23/36	0.193	0.673	0.70	0.60	5.3	28.8
2C-14	16/0.2	0.203	0.503	0.65	0.60	4.0	38.6
2C-15	24/0.2	0.203	0.754	0.70	0.60	7.0	25.7

Applications

Portable Electrical Tools
Home & Kitchen Appliances
Extension Cords
Lighting Systems
Power Supply Cables
Consumer Electronics
Industrial Equipment
OEM Cable Assemblies

Metaplast Engineering LLP manufactures premium-quality electrical cables, molded plugs, power cords, and connectivity solutions engineered to deliver safety, durability, and reliable performance for domestic, commercial, and industrial applications.
